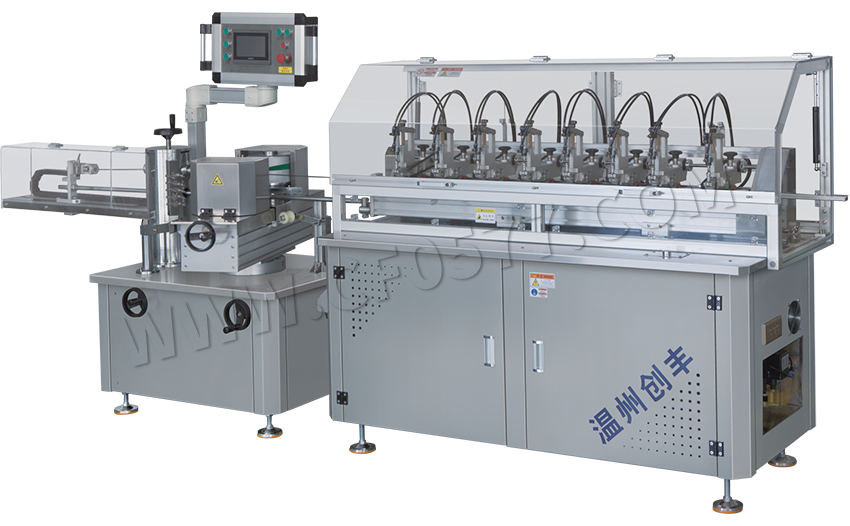

CFXG-80

High Speed Paper Straw Making Machine

Performance & Characteristics

This Machine is suitable for producing different sizes of paper straws, such as OD 4.2, 5mm; 6mm; 8mm; 10m, 12mm etc.



1. This machine adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

2. Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.

3. Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.



Technical Parameter

Straw Inner Diameter

3.3-12.3mm

Wall Thickness

0.3-1mm

Winding Speed

1-80 meters/min

Cutting System

Multi-blades Cutting (8 pcs online)

cutting system

Servo motor synchronism tracking cut

Gluing Way

Single & Double sides

Machine Frame

Stainless Steel Covered

Operator

1 person

Speed Control

By Inverter

Power Supply

380V / 3Phase / 50Hz(Customizable)

Auto Straw Collector

Included

Paper Reel Stand

4 Layers

Glue Unit

4 Layers

Measurement

Main Machine 4650*1160*1750mm
     Paper Stand 1540*1350*2000mm
     Glue Unit 7758*727*1470mm

Weight

2400kgs

Working Space

About 8000*5000mm
