Performance & Characteristics

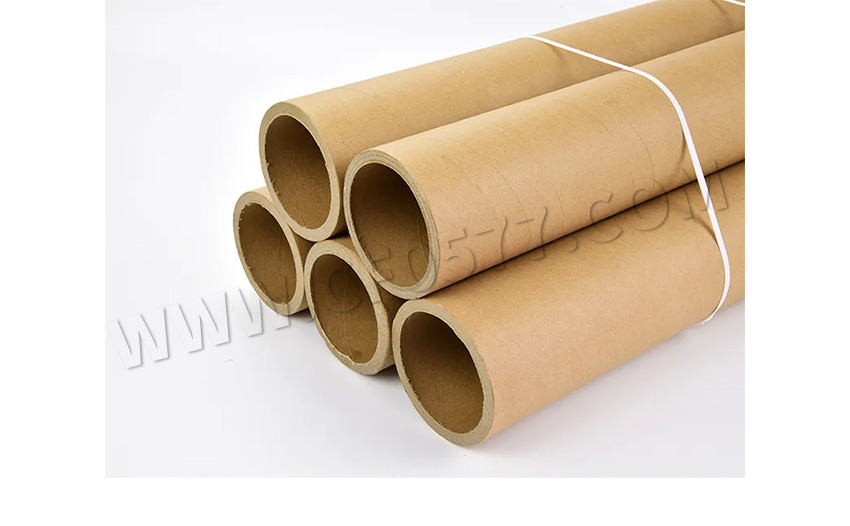

This Machine is suitable for Adhesive Tape cores; Textile cores; Stretch Film Cores and other industrial paper tubes & cores etc.
1. This machine adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

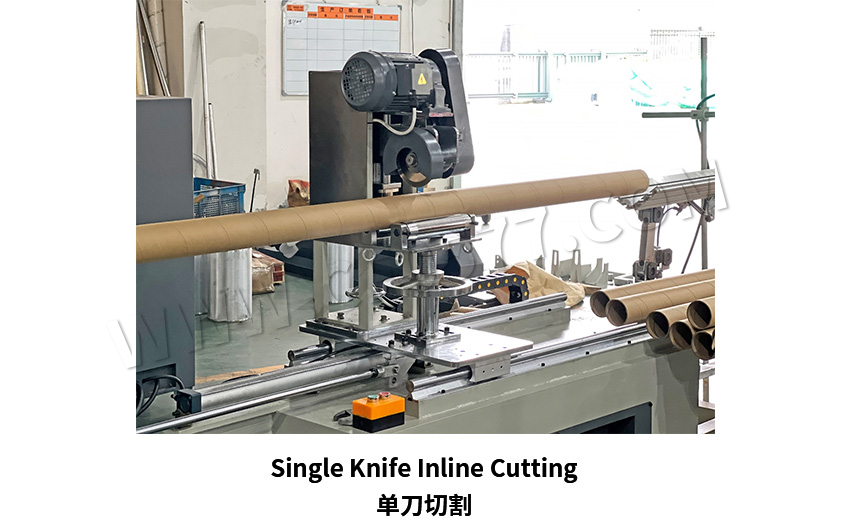

2. Single high speed steel blade online cutting system with cutting range 1000-5000mm.
3. All the brands of components like Motor; Inverter; PLC; Touch Screen can be customized.
Technical Parameter
Paper Layer | 3-16 layer |
Inner Diameter | 25-200mm |
Wall Thickness | 1-10mm |
Online Cutting Length | 1000-5000mm |

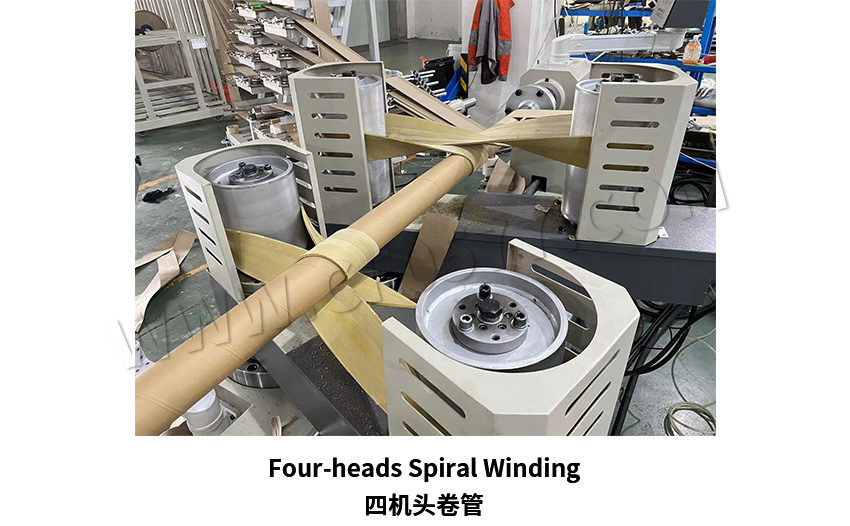

Winding Nose | Four heads double belt |
Working Speed | 1-25 meters/min |
Speed Regulation | By Inverter |
Cutting System | Single high speed steel blade |
Gluing Way | Double sides |
Length Fixing | By Infrared |
Working air pressure | 0.6 Mpa |
Power Supply | 380V/3Phase/50Hz |
Operator | 1-2 persons |
Paper Reel Stand | 16 Layers |
Glue Unit | 16 Layers |
Inner Paper Stand | 1 Set |
Tube Unloading Shelf | 1 Set |
Tool | 1 Set |
Measurement | 4350*1450*1800mm |
Weight | 4500kgs |
