Performance & Characteristics

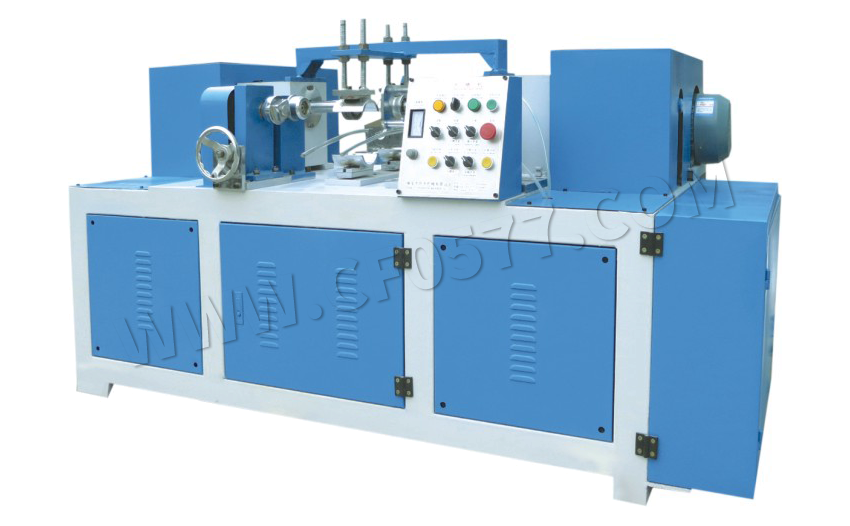

This machine is suitable for textile cores, packing cores and other cores' edge curling / grooving / grinding. It s widely used for POY / DTY paper tubes production line.
Technical Parameter
Inner diameter | 50-150mm |
Curling Thickness | 1-4mm |
Grooving Thickness | 4-15mm |
Tube Length | 50-350mm |
Speed | 20-30 pcs/min. |
Driving Way | Pneumatic |
Tube fixing Way | Pneumatic |
Operator | 1 person |
Tube Feeding / Removing | Automatically |
Working Air Pressure | 0.3-0.6Mpa |
Power Supply | 380V / 3 Phase / 50Hz |
Measurement | 2000*1600*1200mm |
Weight | 850kgs |
Molds | 1set |
